Continuing my previous post that was an introduction to millimeter waves, I want to go deeper into the 3 major differences between E-Band and V-Band frequencies:
1. E-Band gives you protection from 3rd party interference by the regulator (Batman), on the other hand, in V-Band you can deploy your network in a stealth mode (Invisible Man)
2. Using E-Band systems you’ll be able to achieve longer distances (Batman in the Bat-mobile), while in V-Band you can expect up to 1600-2200 feet / 500-700 meters (Invisible Man) for gigabit capacities
3. And finally, V-Band supports the development of palm sized radios (Really Invisible Man)
The above differences make V-Band and E-Band radios different strokes for different folks: V-Band is the optimal solution for street level connectivity applications, while E-Band is more suitable for macro backhaul, rooftop and aggregation use cases. The V-Band is extending the 5GHz band but with much more available spectrum, E-Band, on the other hand, complements licensed microwave frequencies.
Before diving into the details, let’s make sure we’re still on the same page: Both E-Band and V-Band share the characteristics of millimeter waves: high capacity, immunity to interference, suitable for dense deployment and last but not least it doesn’t cost you an arm and a leg to deploy a link.
How the regulator protects your E-Band link and why you can go into stealth mode with V-Band?
The regulation topic is a complex one and varies from country to country, but in general, (in US, Russia, UK and most of the European countries) the V-Band is an unlicensed band, while the E-Band is lightly licensed.
Unlicensed means there is no registration process for the equipment, though technical requirements still apply for equipment certification. The absence of the formal registration means:
- You can install a link without any coordination, suitable for some stealth operations
- No license fees
- In case of interference, you rely on equipment’s dynamic interference avoidance algorithms to mitigate and tolerate interference and not on the regulator
Lightly licensed band means that there is a registration process required by the regulator, so in practice:
- If you install a link, you must notify a regulator, in US there is a publicly available database where everyone may find all the registered E-band links
- Licensing fees are very low (e.g., $75 for 10 years in the US)
- You get a protection mechanism in a manner of “first served” – if there are 2 links in the same location and one interferes with another, the link that was installed first is protected and the second link will be reconfigured to prevent the interference or removed
There is virtually no chance of interference in either V-Band or E-Band, because of high free space loss, the directive antennas and many channels available, but some operators consider the spectrum as its asset and prefer to use licensed bands.
What’s the difference in achievable distance?
The main distance-limiting factor of millimeter waves is the rain. The raindrops size is of the order of the wavelength and hence depresses the wave. This is the reason why snow or fog, for example, don’t have any effect on the millimeter wave links.
In V-Band, there is oxygen attenuation in addition to the rain attenuation. The oxygen molecules absorb these frequencies and produces attenuation. The effect is similar to our microwave oven where the water (being part of the food) absorbs the electromagnetic waves generated by the oven and transform the energy to heat.

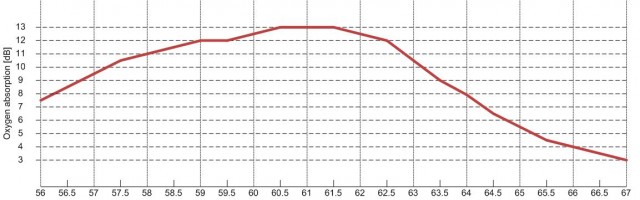

Figure 1: Oxygen absorption as a function of frequency
The oxygen attenuation depends on the exact frequency, height, temperature etc. Typical values vary from 5 dB/Km to 18 dB/km.

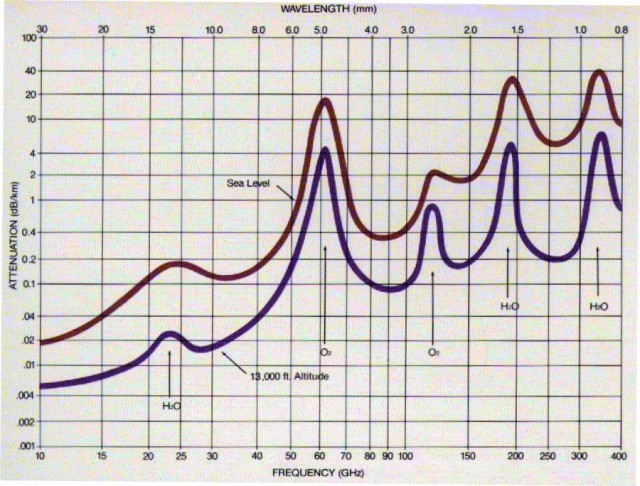

Figure 2: Typical oxygen attenuation profile in V-band
Bottom line, when taking into consideration the rain attenuation, oxygen absorption, typical antennas and transmit power (set by regulation requirements) the distance comfort zone for V-band systems is about 1600-2200 feet/500-700 meters.
How is the equipment form factor related?
FCC regulation in E-band requires minimum antenna gain of 43 dBi (Part 101.115), which practically defines the size of the antenna to be around 1ft. In V-band the story is different, there is an EIRP limitation and no explicit statement about antenna gain (Part 15.255 and latest FCC 13-122 order).
Practically, the regulator allows use of lower gain antennas in V-band frequencies because there is lower risk of interference (due to oxygen absorption). This means that the devices can shrink in size and makes the V-band systems a perfect match for street level connectivity applications like CCTV, WiFi and small cell backhaul.
To make the long story short:
|
E-band |
V-band |
Regulation implications |
Lightly licensed Simple registration required Small license fee Interference protection scheme |
Unlicensed No registration No license fee Stealth mode |
Distance implications |
Subject to rain attenuation Several miles / kilometers |
Subject to rain AND oxygen attenuation Up to 1600-2200 feet/500–700 meters |
Form factor implications |
Compact, dictated by typical 1 ft antenna Suitable for rooftops, towers and masts |
Tiny Blends on the street level: building walls, light poles, bus stations, traffic lights |
Applications |
Fiber extension for businesses Macro backhaul Small cell backhaul in some particular cases Aggregation |
Security (CCTV, traffic radars) WiFi backhaul Small cell backhaul GTTH – Fiber extension to customer premises |
So, do you want to be Batman or Invisible Man? I say – both!
